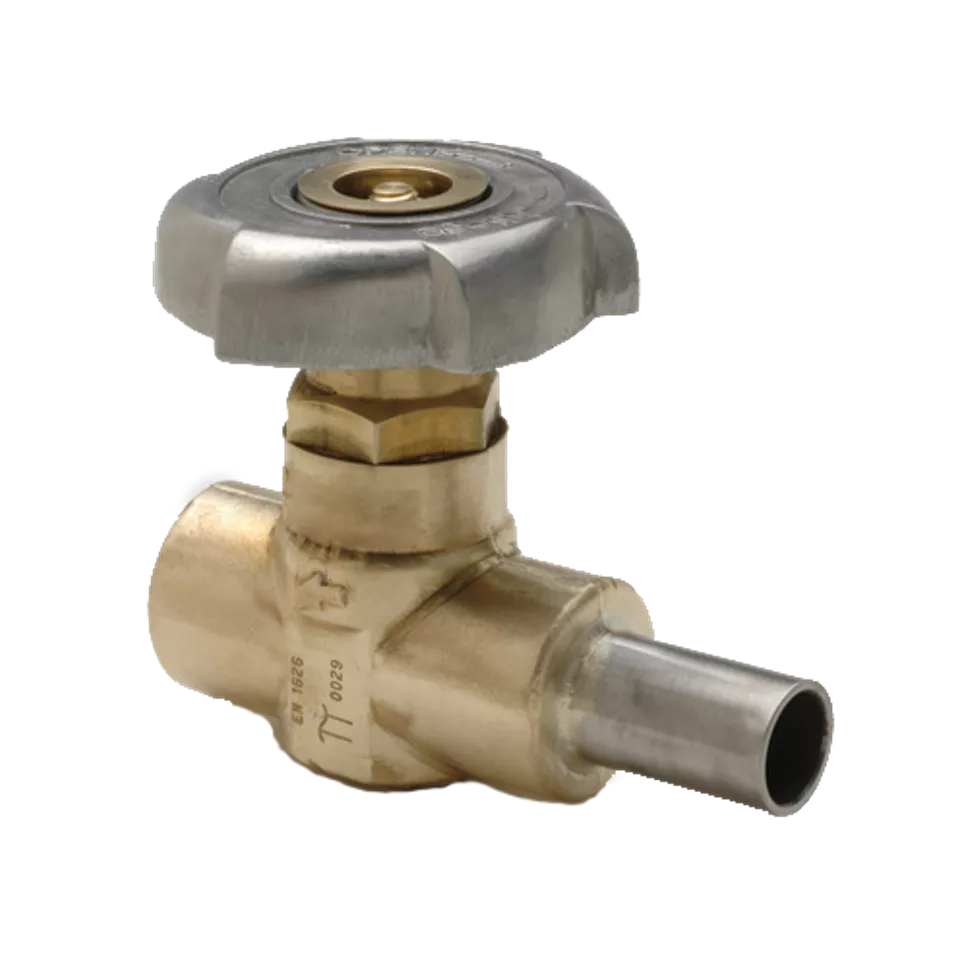

Brass globe-style short stem shutoff valve with bead-set design for use in gas or liquid service.

2300 Isolation Valve

<h2>Features</h2>
<ul>
<li>Brass body</li>
<li>Kel-F bead-seat design for superior shut-off.</li>
<li>Ergonomic aluminum handwheel for low torque shutoff.</li>
<li>Low turn resistance PTFE packing design for superior sealing.</li>
<li>Cleaned and packaged per CGA-G4.1 for oxygen service.</li>
</ul>


<h2>Specifications</h2>
<p>Sizes&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 1/2&quot;, 3/8&quot;</p>
<p>Connections&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Threaded NPTF or Tube End Connections</p>
<p>Body Materials&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Brass</p>
<p>Maximum Inlet Pressure&nbsp; &nbsp; &nbsp; 700 psi (48.3 bar)</p>
<p>Maximum Temperature&nbsp; &nbsp; &nbsp; &nbsp;150°F (65.5°C)</p>


Documents & Drawings

aem-GridColumn aem-GridColumn--default--12

Cash Valve 2300 Isolation Valve

Brass globe-style short stem shutoff valve with bead-set design for use in gas or liquid service. Learn more here at Cashvalve.com

2300 Isolation Valve

Features

Specifications

Documents & Drawings

Manuals: Shut-off valve 2300 series short stem IOM, Cash Valve-EN

Manuals: 2300 Series Valve Shut-Off Assembly Repair Kit Installation Instructions, Cash Valve-EN
